Netty对象缓存处处可见，通过继承Recycler类即可实现对象缓存。

Recycler的使用方式

定义一个拥有Recycler.Handle属性的类，并有方法执行对象回收：handle.recycle(this)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
static final class ThreadLocalUnsafeDirectByteBuf extends UnpooledUnsafeDirectByteBuf {
    private final Handle<ThreadLocalUnsafeDirectByteBuf> handle;

    private ThreadLocalUnsafeDirectByteBuf(Handle<ThreadLocalUnsafeDirectByteBuf> handle) {
        super(UnpooledByteBufAllocator.DEFAULT, 256, Integer.MAX_VALUE);
        this.handle = handle;
    }

    @Override
    protected void deallocate() {
        if (capacity() > THREAD_LOCAL_BUFFER_SIZE) {
            super.deallocate();
        } else {
            clear();
            handle.recycle(this);
        }
    }
}

实现一个Recycler对象，会要求实现newObject方法，这个是缓存池中没有对象时调用该方法创建对象。

1
2
3
4
5
6
7
private static final Recycler<ThreadLocalUnsafeDirectByteBuf> RECYCLER =
                new Recycler<ThreadLocalUnsafeDirectByteBuf>() {
                    @Override
                    protected ThreadLocalUnsafeDirectByteBuf newObject(Handle<ThreadLocalUnsafeDirectByteBuf> handle) {
                        return new ThreadLocalUnsafeDirectByteBuf(handle);
                    }
                };

获取对象：

1
ThreadLocalUnsafeDirectByteBuf buf = RECYCLER.get();

当对象使用完毕时，手动执行对象释放

1
buf.deallocate()

注意deallocate()方法内部必须调用handle.recycle(this)。

Recycler原理解析

继承关系以及成员变量

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
public abstract class Recycler<T> {

    private static final InternalLogger logger = InternalLoggerFactory.getInstance(Recycler.class);

    @SuppressWarnings("rawtypes")
    private static final Handle NOOP_HANDLE = new Handle() {
        @Override
        public void recycle(Object object) {
            // NOOP
        }
    };
    private static final AtomicInteger ID_GENERATOR = new AtomicInteger(Integer.MIN_VALUE);
    private static final int OWN_THREAD_ID = ID_GENERATOR.getAndIncrement();
    private static final int DEFAULT_INITIAL_MAX_CAPACITY_PER_THREAD = 4 * 1024; // Use 4k instances as default.
    private static final int DEFAULT_MAX_CAPACITY_PER_THREAD;
    private static final int INITIAL_CAPACITY;
    private static final int MAX_SHARED_CAPACITY_FACTOR;
    private static final int MAX_DELAYED_QUEUES_PER_THREAD;
    private static final int LINK_CAPACITY;
    private static final int RATIO;
    // 每条线程最大容量
    private final int maxCapacityPerThread;
    //
    private final int maxSharedCapacityFactor;
    private final int ratioMask;
    // 每个线程最大的延迟队列数量
    private final int maxDelayedQueuesPerThread;

    // FastThreadLocal存储栈，栈中存储对象
    private final FastThreadLocal<Stack<T>> threadLocal = new FastThreadLocal<Stack<T>>() {
        @Override
        protected Stack<T> initialValue() {
            return new Stack<T>(Recycler.this, Thread.currentThread(), maxCapacityPerThread, maxSharedCapacityFactor,
                    ratioMask, maxDelayedQueuesPerThread);
        }

        @Override
        protected void onRemoval(Stack<T> value) {
            // Let us remove the WeakOrderQueue from the WeakHashMap directly if its safe to remove some overhead
            if (value.threadRef.get() == Thread.currentThread()) {
               if (DELAYED_RECYCLED.isSet()) {
                   DELAYED_RECYCLED.get().remove(value);
               }
            }
        }
    };
    //
    private static final FastThreadLocal<Map<Stack<?>, WeakOrderQueue>> DELAYED_RECYCLED =
            new FastThreadLocal<Map<Stack<?>, WeakOrderQueue>>() {
        @Override
        protected Map<Stack<?>, WeakOrderQueue> initialValue() {
            return new WeakHashMap<Stack<?>, WeakOrderQueue>();
        }
    };
}

静态代码块中初始化默认值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
static {
    // In the future, we might have different maxCapacity for different object types.
    // e.g. io.netty.recycler.maxCapacity.writeTask
    //      io.netty.recycler.maxCapacity.outboundBuffer
    int maxCapacityPerThread = SystemPropertyUtil.getInt("io.netty.recycler.maxCapacityPerThread",
            SystemPropertyUtil.getInt("io.netty.recycler.maxCapacity", DEFAULT_INITIAL_MAX_CAPACITY_PER_THREAD));
    if (maxCapacityPerThread < 0) {
        maxCapacityPerThread = DEFAULT_INITIAL_MAX_CAPACITY_PER_THREAD;
    }

    DEFAULT_MAX_CAPACITY_PER_THREAD = maxCapacityPerThread;

    MAX_SHARED_CAPACITY_FACTOR = max(2,
            SystemPropertyUtil.getInt("io.netty.recycler.maxSharedCapacityFactor",
                    2));

    MAX_DELAYED_QUEUES_PER_THREAD = max(0,
            SystemPropertyUtil.getInt("io.netty.recycler.maxDelayedQueuesPerThread",
                    // We use the same value as default EventLoop number
                    NettyRuntime.availableProcessors() * 2));

    LINK_CAPACITY = safeFindNextPositivePowerOfTwo(
            max(SystemPropertyUtil.getInt("io.netty.recycler.linkCapacity", 16), 16));

    // By default we allow one push to a Recycler for each 8th try on handles that were never recycled before.
    // This should help to slowly increase the capacity of the recycler while not be too sensitive to allocation
    // bursts.
    RATIO = safeFindNextPositivePowerOfTwo(SystemPropertyUtil.getInt("io.netty.recycler.ratio", 8));

    if (logger.isDebugEnabled()) {
        if (DEFAULT_MAX_CAPACITY_PER_THREAD == 0) {
            logger.debug("-Dio.netty.recycler.maxCapacityPerThread: disabled");
            logger.debug("-Dio.netty.recycler.maxSharedCapacityFactor: disabled");
            logger.debug("-Dio.netty.recycler.linkCapacity: disabled");
            logger.debug("-Dio.netty.recycler.ratio: disabled");
        } else {
            logger.debug("-Dio.netty.recycler.maxCapacityPerThread: {}", DEFAULT_MAX_CAPACITY_PER_THREAD);
            logger.debug("-Dio.netty.recycler.maxSharedCapacityFactor: {}", MAX_SHARED_CAPACITY_FACTOR);
            logger.debug("-Dio.netty.recycler.linkCapacity: {}", LINK_CAPACITY);
            logger.debug("-Dio.netty.recycler.ratio: {}", RATIO);
        }
    }

    INITIAL_CAPACITY = min(DEFAULT_MAX_CAPACITY_PER_THREAD, 256);
}

构造器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
protected Recycler() {
    this(DEFAULT_MAX_CAPACITY_PER_THREAD);
}

protected Recycler(int maxCapacityPerThread) {
    this(maxCapacityPerThread, MAX_SHARED_CAPACITY_FACTOR);
}

protected Recycler(int maxCapacityPerThread, int maxSharedCapacityFactor) {
    this(maxCapacityPerThread, maxSharedCapacityFactor, RATIO, MAX_DELAYED_QUEUES_PER_THREAD);
}

protected Recycler(int maxCapacityPerThread, int maxSharedCapacityFactor,
                    int ratio, int maxDelayedQueuesPerThread) {
    ratioMask = safeFindNextPositivePowerOfTwo(ratio) - 1;
    if (maxCapacityPerThread <= 0) {
        this.maxCapacityPerThread = 0;
        this.maxSharedCapacityFactor = 1;
        this.maxDelayedQueuesPerThread = 0;
    } else {
        this.maxCapacityPerThread = maxCapacityPerThread;
        this.maxSharedCapacityFactor = max(1, maxSharedCapacityFactor);
        this.maxDelayedQueuesPerThread = max(0, maxDelayedQueuesPerThread);
    }
}

获取对象get

1
2
3
4
5
6
7
8
9
10
11
12
public final T get() {
    if (maxCapacityPerThread == 0) {
        return newObject((Handle<T>) NOOP_HANDLE);
    }
    Stack<T> stack = threadLocal.get();
    DefaultHandle<T> handle = stack.pop();
    if (handle == null) {
        handle = stack.newHandle();
        handle.value = newObject(handle);
    }
    return (T) handle.value;
}
  1. 如果最大线程缓存数为0，即不允许缓存了，则执行newObject()构建信息对象；
  2. 通过threadLocal获取当前线程的栈缓存；
  3. 从栈中弹出栈顶元素DefaultHandle；
  4. 如果DefaultHandle为null：
    1. 通过栈创建新的DefaultHandle；
    2. 为新的DefaultHandle创建对象newObject();
  5. 返回handle.value。

返还对象recycle

Handle#recycle(Object)替代了该方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Deprecated
public final boolean recycle(T o, Handle<T> handle) {
    if (handle == NOOP_HANDLE) {
        return false;
    }

    DefaultHandle<T> h = (DefaultHandle<T>) handle;
    if (h.stack.parent != this) {
        return false;
    }

    h.recycle(o);
    return true;
}

  1. 如果handle是NOOP_HANDLE则返回false;
  2. 如果handler的stack所属的Recycle不是当前对象则返回false；
  3. 执行handler的recycle方法。

Recycler.DefaultHandle

DefaultHandle是Handle的默认实现。

Handle接口的核心是提供recycle方法的回调，在recycle方法中可以做资源回收。

  • 当element出栈pop的时候会将recycleId和lastRecycledId设置为0；
  • 当element存入栈的时候会将recycleId和lastRecycledId设置为OWN_THREAD_ID；
  • 当element存入延迟队列的时候会将lastRecycledId设置为队列的id；
  • 当element从延迟队列迁移到栈中时会将recycleId设置为lastRecycledId；

通过这两个状态可以判断是否被回收。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
static final class DefaultHandle<T> implements Handle<T> {
    private int lastRecycledId;
    private int recycleId;

    boolean hasBeenRecycled;

    private Stack<?> stack;
    private Object value;

    DefaultHandle(Stack<?> stack) {
        this.stack = stack;
    }

    @Override
    public void recycle(Object object) {
        if (object != value) {
            throw new IllegalArgumentException("object does not belong to handle");
        }

        Stack<?> stack = this.stack;
        if (lastRecycledId != recycleId || stack == null) {
            throw new IllegalStateException("recycled already");
        }

        stack.push(this);
    }
}

DefaultHandle的核心就在于它的recycle方法，在recycle方法中会将this进行回收，将this入栈。

recycle方法：

  1. 校验回收的对象是否一致；
  2. 校验循环id；
  3. 将当前对象push进栈；

Recycler.Stack

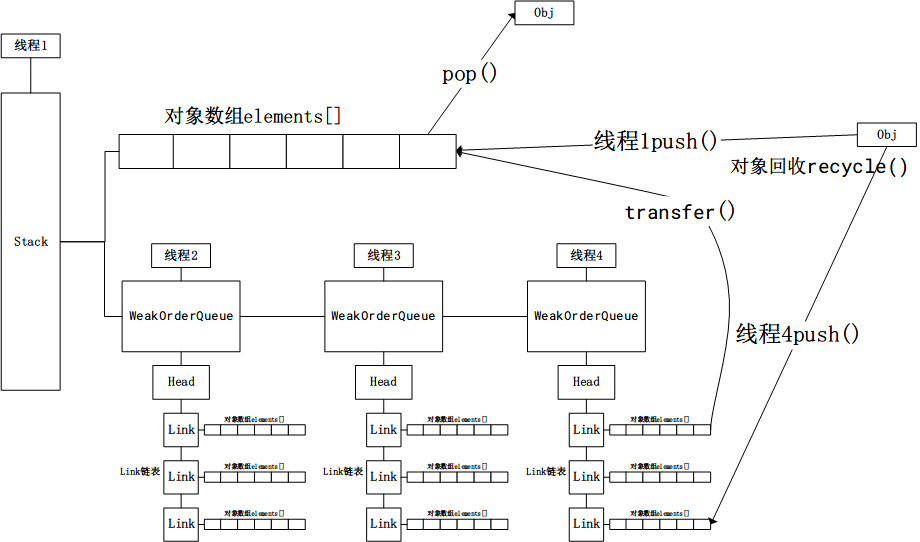

这个栈有个特殊的结构：

  • 如果对象获取的线程和回收的线程一致，则会执行push()->pushNow()将对象存入栈；
  • 如果对象获取的线程和回收的线程不一致，则会在当前线程创建一个延迟队列，执行push()->pushLater()将对象存入延迟队列；且栈会持有该队列（链表存队列）；
  • 当获取对象时，先从栈中取对象；如果栈长为0，则会执行scavenge()->WeakOrderQueue.transfer()将持有的队列中的对象迁移到栈中，然后返回对象。

WeakOrderQueue实现了延迟队列，使得对象可以跨线程共享。

继承关系以及成员变量

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
static final class Stack<T> {
    // 所属的Recycler
    final Recycler<T> parent;
    // 当前线程的弱引用
    final WeakReference<Thread> threadRef;
    // 可用技术
    final AtomicInteger availableSharedCapacity;
    final int maxDelayedQueues;
    // 最大容量
    private final int maxCapacity;
    private final int ratioMask;
    // 存储数组
    private DefaultHandle<?>[] elements;
    // 当前大小
    private int size;
    private int handleRecycleCount = -1; // Start with -1 so the first one will be recycled.
    private WeakOrderQueue cursor, prev;
    private volatile WeakOrderQueue head;
}

构造器

1
2
3
4
5
6
7
8
9
10
11
12
 Stack(Recycler<T> parent, Thread thread, int maxCapacity, int maxSharedCapacityFactor,
        int ratioMask, int maxDelayedQueues) {
    this.parent = parent;
    // 弱引用
    threadRef = new WeakReference<Thread>(thread);
    this.maxCapacity = maxCapacity;
    // 计数器
    availableSharedCapacity = new AtomicInteger(max(maxCapacity / maxSharedCapacityFactor, LINK_CAPACITY));
    elements = new DefaultHandle[min(INITIAL_CAPACITY, maxCapacity)];
    this.ratioMask = ratioMask;
    this.maxDelayedQueues = maxDelayedQueues;
}

newHandle

1
2
3
DefaultHandle<T> newHandle() {
    return new DefaultHandle<T>(this);
}

入栈push

1
2
3
4
5
6
7
8
9
10
11
12
13
void push(DefaultHandle<?> item) {
    // 校验线程是否一致
    Thread currentThread = Thread.currentThread();
    if (threadRef.get() == currentThread) {
        // The current Thread is the thread that belongs to the Stack, we can try to push the object now.
        pushNow(item);
    } else {
        // The current Thread is not the one that belongs to the Stack
        // (or the Thread that belonged to the Stack was collected already), we need to signal that the push
        // happens later.
        pushLater(item, currentThread);
    }
}
  1. 如果当前线程与Stack中弱引用存储的线程一样，则立即入栈执行pushNow；
  2. 不然延迟入栈，执行pushLater；

Stack入栈实现了同步回收（同一个线程获取对象并回收），和异步回收（获取对象和回收对象的线程不一致）。

  • 同步回收：直接将对象存入栈中；
  • 异步回收：将对象存储延迟队列中，只有在Stack中没有对象时才会将Stack存储的延迟队列链表中的对象存入栈中。

立即入栈pushNow

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
private void pushNow(DefaultHandle<?> item) {
    if ((item.recycleId | item.lastRecycledId) != 0) {
        throw new IllegalStateException("recycled already");
    }
    //
    item.recycleId = item.lastRecycledId = OWN_THREAD_ID;

    int size = this.size;
    // 存不下了释放
    if (size >= maxCapacity || dropHandle(item)) {
        // Hit the maximum capacity or should drop - drop the possibly youngest object.
        return;
    }
    // 数组两倍扩容
    if (size == elements.length) {
        elements = Arrays.copyOf(elements, min(size << 1, maxCapacity));
    }
    // 存起来
    elements[size] = item;
    this.size = size + 1;
}
  1. 校验handle的循环id；
  2. 如果当前容量已经到上限，则释放并返回；
  3. 如果当前长度size和数组长度一样，则对数组进行两倍扩容；
  4. 将handle存入数组的末尾，并将size加一；

延迟入栈pushLater

当Stock中线程的弱引用与持有Stock的线程不一致时，就会执行pushLater将handle存储延迟队列中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
private void pushLater(DefaultHandle<?> item, Thread thread) {
    // Map是WeakHashMap，避免强引用
    // 获取延迟队列
    Map<Stack<?>, WeakOrderQueue> delayedRecycled = DELAYED_RECYCLED.get();
    WeakOrderQueue queue = delayedRecycled.get(this);
    if (queue == null) {
        // 一个线程最大的延迟队列数
        if (delayedRecycled.size() >= maxDelayedQueues) {
            // Add a dummy queue so we know we should drop the object
            // 舍弃这个handle
            delayedRecycled.put(this, WeakOrderQueue.DUMMY);
            return;
        }
        // Check if we already reached the maximum number of delayed queues and if we can allocate at all.
        // 分配一个队列
        // 并且会将这个队列插入Stack的队列链表的head
        if ((queue = WeakOrderQueue.allocate(this, thread)) == null) {
            // drop object
            return;
        }
        // 延迟队列加入map
        delayedRecycled.put(this, queue);
    } else if (queue == WeakOrderQueue.DUMMY) {
        // drop object
        return;
    }
    // 将handle加入延迟队列
    queue.add(item);
}

  1. 获取延迟队列；
  2. 如果队列没有：
    1. 判断是否达到单个线程最大延迟队列数，如果是则舍弃这个handle，将单前栈的延迟队列设置为WeakOrderQueue.DUMMY；
    2. WeakOrderQueue.allocate分配一个队列，如果没有分配成功则return；
    3. 将新分配的延迟队列加入到map中；
  3. 如果队列是WeakOrderQueue.DUMMY，则return；
  4. 将handle加入到队列中。

栈顶出栈pop

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
DefaultHandle<T> pop() {
    int size = this.size;
    if (size == 0) {
        // 如果没有则从延迟队列中采集
        if (!scavenge()) {
            return null;
        }
        size = this.size;
        if (size <= 0) {
            // double check, avoid races
            return null;
        }
    }
    // 从栈尾去除对象
    size --;
    DefaultHandle ret = elements[size];
    elements[size] = null;
    // 校验循环id
    // 并发
    if (ret.lastRecycledId != ret.recycleId) {
        throw new IllegalStateException("recycled multiple times");
    }
    ret.recycleId = 0;
    ret.lastRecycledId = 0;
    this.size = size;
    return ret;
}
  1. 如果当前栈大小为0，则调用scavenge()到延迟队列中采集；
    1. 如果还是小于0则返回null；
  2. 栈大小减一；
  3. 将栈尾的数据去除；
  4. 校验循环id；
  5. 将循环id都设置为0，并返回。

收集scavenge

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
boolean scavenge() {
    // continue an existing scavenge, if any
    if (scavengeSome()) {
        return true;
    }

    // reset our scavenge cursor
    prev = null;
    cursor = head;
    return false;
}

boolean scavengeSome() {
    WeakOrderQueue prev;
    WeakOrderQueue cursor = this.cursor;
    if (cursor == null) {
        prev = null;
        cursor = head;
        if (cursor == null) {
            return false;
        }
    } else {
        prev = this.prev;
    }

    boolean success = false;
    do {
        if (cursor.transfer(this)) {
            success = true;
            break;
        }
        WeakOrderQueue next = cursor.next;
        // 线程引用没有了，线程被回收了
        if (cursor.owner.get() == null) {
            // If the thread associated with the queue is gone, unlink it, after
            // performing a volatile read to confirm there is no data left to collect.
            // We never unlink the first queue, as we don't want to synchronize on updating the head.
            if (cursor.hasFinalData()) {
                for (;;) {
                    if (cursor.transfer(this)) {
                        success = true;
                    } else {
                        break;
                    }
                }
            }

            if (prev != null) {
                prev.setNext(next);
            }
        } else {
            prev = cursor;
        }

        cursor = next;

    } while (cursor != null && !success);

    this.prev = prev;
    this.cursor = cursor;
    return success;
}
  1. 如果cursor没有，则取head；
  2. 如果head也没有，则返回false；
  3. 循环cursor不为null且!success：
    1. cursor.transfer将队列中的Handle存到Stack上，设置success为true；
    2. 如果cursor.owner.get() == null，线程被回收了：
      1. 如果cursor中还有数据，循环：
        1. cursor.transfer将队列中的Handle存到Stack上；
          1. 清空成功则设置success为true;
          2. 不然则break;
      2. 将cursor从链表中去除，前节点连接到后续节点；
    3. 前置节点设为cursor；
    4. cursor设置为cursor的next节点；
  4. 更新this.prev = prev和this.cursor = cursor；
  5. 返回success。

Recycler.WeakOrderQueue

继承关系及成员变量

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
private static final class WeakOrderQueue {
    // 当一个线程的延迟队列数达到上限，就不允许handle再创建了，此时设置为DUMMY
    // DUMMY队列不会添加任何数据
    static final WeakOrderQueue DUMMY = new WeakOrderQueue();
    // 队列的头部，Head其实是实际的队列，存储了队列的总容量availableSharedCapacity
    // 队列存储的数据是Head中的Link节点，Link节点构成链表
    // 每个Link节点有长度为16的数组，当Link存储达到上限是会从Head的availableSharedCapacity划去16长度
    // 然后创建新的Link节点
    private final Head head;
    private Link tail;
    // pointer to another queue of delayed items for the same stack
    // 队列本身是链表的节点
    private WeakOrderQueue next;
    // 持有线程的弱引用
    private final WeakReference<Thread> owner;
    // 唯一id，每个队列的id都不一样
    private final int id = ID_GENERATOR.getAndIncrement();
}

Link是队列中真正存储数据的地方，每个Link可以存储LINK_CAPACITY个对象，一个队列中的Link数为Head.availableSharedCapacity/LINK_CAPACITY

1
2
3
4
5
6
static final class Link extends AtomicInteger {
    private final DefaultHandle<?>[] elements = new DefaultHandle[LINK_CAPACITY];

    private int readIndex;
    Link next;
}

WeakOrderQueue.Head

Head维护availableSharedCapacity，来控制Link的数量。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
static final class Head {
    private final AtomicInteger availableSharedCapacity;

    Link link;

    Head(AtomicInteger availableSharedCapacity) {
        this.availableSharedCapacity = availableSharedCapacity;
    }

    /// TODO: In the future when we move to Java9+ we should use java.lang.ref.Cleaner.
    @Override
    protected void finalize() throws Throwable {
        // ...代码省略了
    }
    // 将Link释放了，空间加回来
    void reclaimSpace(int space) {
        assert space >= 0;
        availableSharedCapacity.addAndGet(space);
    }
    // 申请空间，用于创建Link，因为一个Link要占用LINK_CAPACITY大小
    boolean reserveSpace(int space) {
        return reserveSpace(availableSharedCapacity, space);
    }

    static boolean reserveSpace(AtomicInteger availableSharedCapacity, int space) {
        assert space >= 0;
        for (;;) {
            int available = availableSharedCapacity.get();
            if (available < space) {
                return false;
            }
            if (availableSharedCapacity.compareAndSet(available, available - space)) {
                return true;
            }
        }
    }
}

分配队列allocate

1
2
3
4
5
static WeakOrderQueue allocate(Stack<?> stack, Thread thread) {
    // We allocated a Link so reserve the space
    return Head.reserveSpace(stack.availableSharedCapacity, LINK_CAPACITY)
            ? newQueue(stack, thread) : null;
}

创建新队列newQueue

1
2
3
4
5
6
7
8
9
static WeakOrderQueue newQueue(Stack<?> stack, Thread thread) {
    final WeakOrderQueue queue = new WeakOrderQueue(stack, thread);
    // Done outside of the constructor to ensure WeakOrderQueue.this does not escape the constructor and so
    // may be accessed while its still constructed.
    // 将队列插入的栈的队列链表中
    stack.setHead(queue);

    return queue;
}

添加add

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
void add(DefaultHandle<?> handle) {
    // 将handle的lastRecycledId设置为队列的Id
    handle.lastRecycledId = id;
    // 队尾
    Link tail = this.tail;
    int writeIndex;
    // LINK_CAPACITY = 16
    if ((writeIndex = tail.get()) == LINK_CAPACITY) {
        // 是否到队里存储上限availableSharedCapacity
        // 如果能从availableSharedCapacity中减到LINK_CAPACITY，就可以继续存
        if (!head.reserveSpace(LINK_CAPACITY)) {
            // Drop it.
            return;
        }
        // We allocate a Link so reserve the space
        // 划分到了LINK_CAPACITY空间就可以创建Link节点了
        this.tail = tail = tail.next = new Link();
        // 写指针更新为新的节点
        writeIndex = tail.get();
    }
    // 尾节点存入handle
    tail.elements[writeIndex] = handle;
    // 清空handle所属的Stack
    handle.stack = null;
    // we lazy set to ensure that setting stack to null appears before we unnull it in the owning thread;
    // this also means we guarantee visibility of an element in the queue if we see the index updated
    // 更新index，lazySet是原子类的UNSAFE的方法
    // 用于更新，相对于普通的更新，它少了一部分内存屏障（store-load），提升了性能
    // 缺点是其他线程看到数据变更会有延迟
    tail.lazySet(writeIndex + 1);
}
  1. 将handle的lastRecycledId设置为队列的Id
  2. 如果writeIndex到了数组尾：
    1. 如果不能从availableSharedCapacity中减到LINK_CAPACITY，则退出；
    2. 不然，new Link()，writeIndex指向新Link的起始位置；
  3. 将handle存入tail.elements[writeIndex]
  4. 清空handle所属的Stack
  5. writeIndex加一

将队列数据存到栈中transfer

从Stock中获取对象时如果没有对象，则调用Stock.scavenge()将延迟队列中的对象迁到栈中。

transfer一次只会将一个Link中的对象迁移到栈中，所以Stock.scavenge()->scavengeSome()中会循环调用transfer方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
boolean transfer(Stack<?> dst) {
        Link head = this.head.link;
        if (head == null) {
            return false;
        }

        if (head.readIndex == LINK_CAPACITY) {
            // 读完了
            if (head.next == null) {
                return false;
            }
            // 读下一个link
            this.head.link = head = head.next;
            // 是否空间
            this.head.reclaimSpace(LINK_CAPACITY);
        }

        final int srcStart = head.readIndex;
        int srcEnd = head.get();
        final int srcSize = srcEnd - srcStart;
        if (srcSize == 0) {
            return false;
        }

        final int dstSize = dst.size;
        // Stack需要的容量
        final int expectedCapacity = dstSize + srcSize;

        if (expectedCapacity > dst.elements.length) {
            // 栈进行扩容
            final int actualCapacity = dst.increaseCapacity(expectedCapacity);
            srcEnd = min(srcStart + actualCapacity - dstSize, srcEnd);
        }

        if (srcStart != srcEnd) {
            final DefaultHandle[] srcElems = head.elements;
            final DefaultHandle[] dstElems = dst.elements;
            int newDstSize = dstSize;
            // 将link中的数组拷贝到栈的数组上
            for (int i = srcStart; i < srcEnd; i++) {
                DefaultHandle element = srcElems[i];
                // 更新recycleId
                // 当element出栈pop的时候会将recycleId和lastRecycledId设置为0
                // 当element存入栈的时候会将recycleId和lastRecycledId设置为OWN_THREAD_ID
                // 当element存入延迟队列的时候会将lastRecycledId设置为队列的id
                if (element.recycleId == 0) {
                    element.recycleId = element.lastRecycledId;
                } else if (element.recycleId != element.lastRecycledId) {
                    throw new IllegalStateException("recycled already");
                }
                // 清空link的栈
                srcElems[i] = null;
                // 循环使用超过一定次数就会放弃回收该对象
                if (dst.dropHandle(element)) {
                    // Drop the object.
                    continue;
                }
                element.stack = dst;
                // 存到栈
                dstElems[newDstSize ++] = element;
            }
            // 如果整个link都被清除了，而且有后续节点，就释放空间
            if (srcEnd == LINK_CAPACITY && head.next != null) {
                // Add capacity back as the Link is GCed.
                this.head.reclaimSpace(LINK_CAPACITY);
                this.head.link = head.next;
            }
            head.readIndex = srcEnd;
            // 没有从队列中将对象存到栈中
            if (dst.size == newDstSize) {
                return false;
            }
            // 更新新的长度
            dst.size = newDstSize;
            return true;
        } else {
            // The destination stack is full already.
            return false;
        }
    }
}
  1. 如果全部读完了，则返回false；
  2. 不然就读下一个Link；
  3. 计算这个Link要读多少个元素；
  4. 栈扩容；
  5. 循环拷贝Link数组中的元素到栈中，并清空Link数组；
  6. 拷贝时校验recycleId和lastRecycledId；
  7. 并将element.recycleId = element.lastRecycledId，此时lastRecycledId为队列id；
  8. 释放link空间；
  9. 如果没有从队列中迁移对象到栈中，则返回false；
  10. 不然，更新栈长度，且放回true；
