之前解析了Netty服务器端启动流程和线程模型，现在解析Netty对于读写事件的处理流程。

读事件

例子按照http服务器端的那个例子:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public void serverRun() throws InterruptedException {
    EventLoopGroup boss = new NioEventLoopGroup();
    EventLoopGroup worker = new NioEventLoopGroup();

    try {
        ServerBootstrap serverBootstrap = new ServerBootstrap();
        serverBootstrap.group(boss, worker)
                .channel(NioServerSocketChannel.class)
                .childHandler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        ch.pipeline().addLast(new HttpServerCodec());
                        ch.pipeline().addLast(new HttpObjectAggregator(1024*1024));
                        // 自定义处理逻辑
                        ch.pipeline().addLast(new HttpServerHandler());
                    }
                })
                .option(ChannelOption.SO_BACKLOG, 128)
        ;
        ChannelFuture future = serverBootstrap.bind(80).sync();
        future.channel().closeFuture().sync();
    }finally {
        boss.shutdownGracefully();
        worker.shutdownGracefully();
    }
}

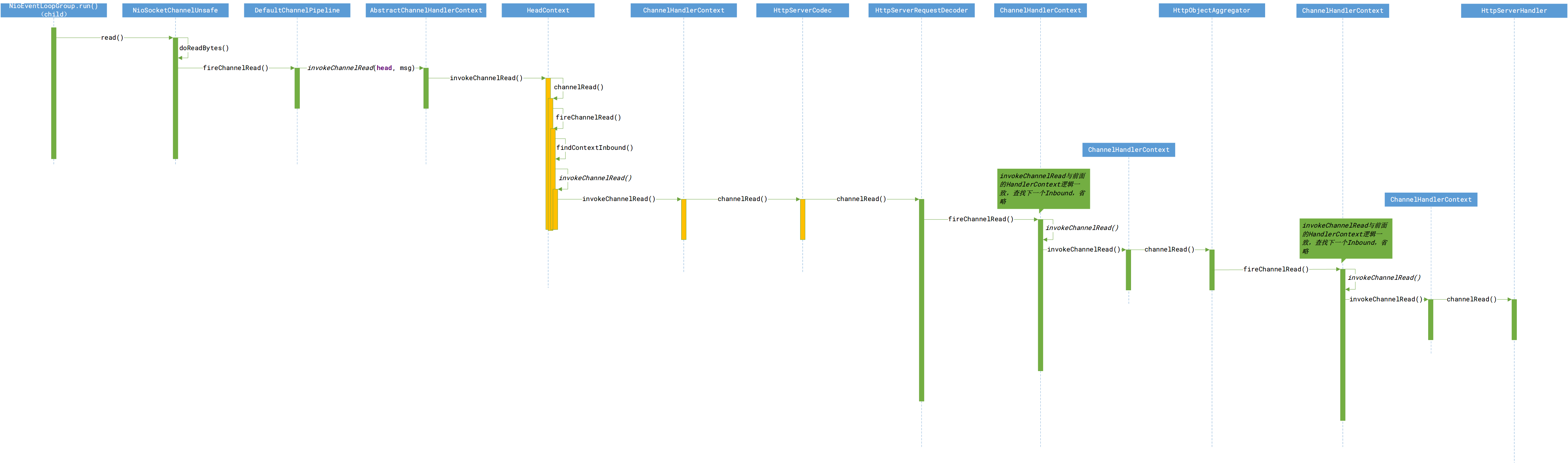

Http请求事件的处理（读事件）

处理的核心就是通过ChannelHandlerContext的链式结构不断向后传递，最终达到自定义的处理逻辑HttpServerHandler中。

这个传递逻辑可以看之前解析的ChannelHandlerContext篇。findContextInbound()不断的查找下一个Inbound处理器上下文。

第一个头节点的执行:

DefaultChannelPipeline

1
2
3
4
public final ChannelPipeline fireChannelRead(Object msg) {
    AbstractChannelHandlerContext.invokeChannelRead(head, msg);
    return this;
}

AbstractChannelHandlerContext

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
    final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
        next.invokeChannelRead(m);
    } else {
        executor.execute(new Runnable() {
            @Override
            public void run() {
                next.invokeChannelRead(m);
            }
        });
    }
}
// 非静态方法，当前处理器处理完成后执行
public ChannelHandlerContext fireChannelRead(final Object msg) {
    invokeChannelRead(findContextInbound(MASK_CHANNEL_READ), msg);
    return this;
}

对于HttpServerCodec.HttpServerRequestDecoder它是继承了ByteToMessageDecoder:

1
2
3
4
5
static void fireChannelRead(ChannelHandlerContext ctx, CodecOutputList msgs, int numElements) {
    for (int i = 0; i < numElements; i ++) {
        ctx.fireChannelRead(msgs.getUnsafe(i));
    }
}

写事件

写事件其实就是读事件的逆顺序执行。

在你在HttpServerHandler中处理完自定义逻辑，然后要将信息响应给客户端时，就会如下执行

1
ctx.writeAndFlush(response);

依赖的就是上下文的writeAndFlush方法，从当前处理器上下文向前查找Onbound处理器上下文。

或者客户端直接发送信息，这样就是从尾节点(tail)开始：

1
2
ChannelFuture future = serverBootstrap.bind(80).sync();
future.channel().pipeline().write("xxx");

DefaultChannelPipeline

pipeline中正好与read相反，处理器从尾节点开始。

1
2
3
public final ChannelFuture write(Object msg) {
    return tail.write(msg);
}

最终与读类似，依赖ChannelHandlerContext的write方法，write方法中通过findContextOutbound()不断查找上一个Onbound的处理器上下文。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void write(Object msg, boolean flush, ChannelPromise promise) {
    // ...
    final AbstractChannelHandlerContext next = findContextOutbound(flush ?
            (MASK_WRITE | MASK_FLUSH) : MASK_WRITE);
    final Object m = pipeline.touch(msg, next);
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
        if (flush) {
            next.invokeWriteAndFlush(m, promise);
        } else {
            next.invokeWrite(m, promise);
        }
    } else {
        // ...
    }
}
