在解析channel时发现channel内部实现非常依赖于ChannelPipeline，在每个事件节点都会调用ChannelPipeline的方法。

在Netty里，Channel是通讯的载体，而ChannelHandler负责Channel中的逻辑处理。

那么ChannelPipeline是什么呢？我觉得可以理解为ChannelHandler的容器：一个Channel包含一个ChannelPipeline，所有ChannelHandler都会注册到ChannelPipeline中，并按顺序组织起来。

ChannelPipeline

在Channel的各个生命周期事件的时候调用对应的pipeline的方法然后执行ChannelHandler链。

ChannelPipeline不直接持有ChannelHandler，而是将其封装成ChannelHandlerContext，然后各种操作由ChannelHandlerContext来处理。ChannelHandlerAdapter的实现类如果是可共享的则可以被多个pipeline持有，不然只能被一个pipeline持有。

Netty的ChannelPipeline包含两条线路：Inbound和Outbound。Inbound对应上行，接收到的消息、被动的状态改变，都属于Inbound。Outbound则对应下行，发送的消息、主动的状态改变，都属于Outbound。

下面的是源码的注释，I/O事件被ChannelHandler处理的流程，Inbound是从链头到链尾，而Outbound是从链尾到链头。

                                                  I/O Request
                                             via {@link Channel} or
                                         {@link ChannelHandlerContext}
                                                       |
   +---------------------------------------------------+---------------+
   |                           ChannelPipeline         |               |
   |                                                  \|/              |
   |    +---------------------+            +-----------+----------+    |
   |    | Inbound Handler  N  |            | Outbound Handler  1  |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   |               |                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler N-1 |            | Outbound Handler  2  |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  .               |
   |               .                                   .               |
   | ChannelHandlerContext.fireIN_EVT() ChannelHandlerContext.OUT_EVT()|
   |        [ method call]                       [method call]         |
   |               .                                   .               |
   |               .                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler  2  |            | Outbound Handler M-1 |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   |               |                                  \|/              |
   |    +----------+----------+            +-----------+----------+    |
   |    | Inbound Handler  1  |            | Outbound Handler  M  |    |
   |    +----------+----------+            +-----------+----------+    |
   |              /|\                                  |               |
   +---------------+-----------------------------------+---------------+
                   |                                  \|/
   +---------------+-----------------------------------+---------------+
   |               |                                   |               |
   |       [ Socket.read() ]                    [ Socket.write() ]     |
   |                                                                   |
   |  Netty Internal I/O Threads (Transport Implementation)            |
   +-------------------------------------------------------------------+

ChannelHandlerContext中的方法对应各个事件，这些方法也被分为Inbound和Outbound。
Inbound事件方法

1
2
3
4
5
6
7
8
9
ChannelHandlerContext#fireChannelRegistered()
ChannelHandlerContext#fireChannelActive()
ChannelHandlerContext#fireChannelRead(Object)
ChannelHandlerContext#fireChannelReadComplete()
ChannelHandlerContext#fireExceptionCaught(Throwable)
ChannelHandlerContext#fireUserEventTriggered(Object)
ChannelHandlerContext#fireChannelWritabilityChanged()
ChannelHandlerContext#fireChannelInactive()
ChannelHandlerContext#fireChannelUnregistered()

Outbound事件方法

1
2
3
4
5
6
7
8
ChannelHandlerContext#bind(SocketAddress, ChannelPromise)
ChannelHandlerContext#connect(SocketAddress, SocketAddress, ChannelPromise)
ChannelHandlerContext#write(Object, ChannelPromise)
ChannelHandlerContext#flush()
ChannelHandlerContext#read()
ChannelHandlerContext#disconnect(ChannelPromise)
ChannelHandlerContext#close(ChannelPromise)
ChannelHandlerContext#deregister(ChannelPromise)

接口

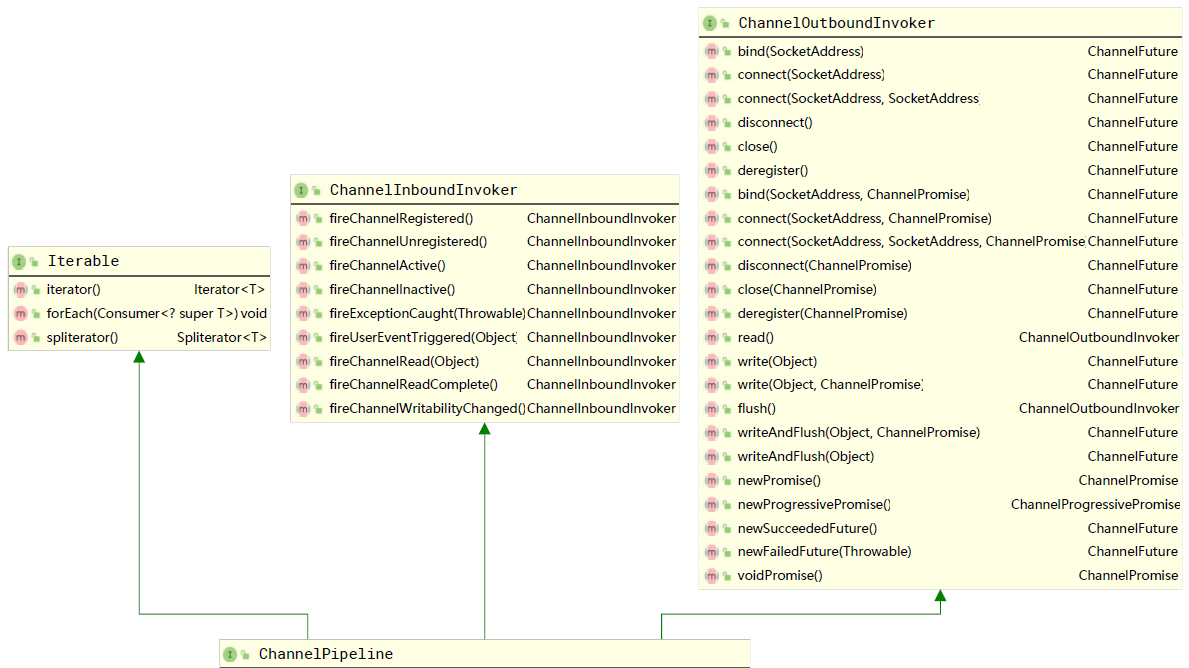

ChannelPipeline接口继承了ChannelInboundInvoker, ChannelOutboundInvoker, Iterable<Entry<String, ChannelHandler>>接口，ChannelInboundInvoker中定义了Inbound事件的方法，ChannelOutboundInvoker中定义了Outbound事件的方法，Iterable用于迭代ChannelHandler。

ChannelPipeline自身定义的方法用于操作ChannelHandler的存取。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
public interface ChannelPipeline
        extends ChannelInboundInvoker, ChannelOutboundInvoker, Iterable<Entry<String, ChannelHandler>> {

    ChannelPipeline addFirst(String name, ChannelHandler handler);
    ChannelPipeline addFirst(EventExecutorGroup group, String name, ChannelHandler handler);
    ChannelPipeline addLast(String name, ChannelHandler handler);
    ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler);
    ChannelPipeline addBefore(String baseName, String name, ChannelHandler handler);
    ChannelPipeline addBefore(EventExecutorGroup group, String baseName, String name, ChannelHandler handler);
    ChannelPipeline addAfter(String baseName, String name, ChannelHandler handler);
    ChannelPipeline addAfter(EventExecutorGroup group, String baseName, String name, ChannelHandler handler);
    ChannelPipeline addFirst(ChannelHandler... handlers);
    ChannelPipeline addFirst(EventExecutorGroup group, ChannelHandler... handlers);
    ChannelPipeline addLast(ChannelHandler... handlers);
    ChannelPipeline addLast(EventExecutorGroup group, ChannelHandler... handlers);

    ChannelPipeline remove(ChannelHandler handler);
    ChannelHandler remove(String name);
    <T extends ChannelHandler> T remove(Class<T> handlerType);
    ChannelHandler removeFirst();
    ChannelHandler removeLast();
    ChannelPipeline replace(ChannelHandler oldHandler, String newName, ChannelHandler newHandler);
    ChannelHandler replace(String oldName, String newName, ChannelHandler newHandler);
    <T extends ChannelHandler> T replace(Class<T> oldHandlerType, String newName,
                                         ChannelHandler newHandler);
    ChannelHandler first();
    ChannelHandlerContext firstContext();
    ChannelHandler last();
    ChannelHandlerContext lastContext();
    ChannelHandler get(String name);
    <T extends ChannelHandler> T get(Class<T> handlerType);
    ChannelHandlerContext context(ChannelHandler handler);
    ChannelHandlerContext context(String name);
    ChannelHandlerContext context(Class<? extends ChannelHandler> handlerType);
    Channel channel();
    List<String> names();
    Map<String, ChannelHandler> toMap();

    @Override
    ChannelPipeline fireChannelRegistered();
    @Override
    ChannelPipeline fireChannelUnregistered();
    @Override
    ChannelPipeline fireChannelActive();
    @Override
    ChannelPipeline fireChannelInactive();
    @Override
    ChannelPipeline fireExceptionCaught(Throwable cause);
    @Override
    ChannelPipeline fireUserEventTriggered(Object event);
    @Override
    ChannelPipeline fireChannelRead(Object msg);
    @Override
    ChannelPipeline fireChannelReadComplete();
    @Override
    ChannelPipeline fireChannelWritabilityChanged();
    @Override
    ChannelPipeline flush();
}

DefaultChannelPipeline

DefaultChannelPipeline是ChannelPipeline的默认实现。

成员变量

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public class DefaultChannelPipeline implements ChannelPipeline {
    // HeadContext#0 和 TailContext#0
    private static final String HEAD_NAME = generateName0(HeadContext.class);
    private static final String TAIL_NAME = generateName0(TailContext.class);

    private static final FastThreadLocal<Map<Class<?>, String>> nameCaches =
            new FastThreadLocal<Map<Class<?>, String>>() {
        @Override
        protected Map<Class<?>, String> initialValue() {
            return new WeakHashMap<Class<?>, String>();
        }
    };
    // estimatorHandle属性的原子更新
    private static final AtomicReferenceFieldUpdater<DefaultChannelPipeline, MessageSizeEstimator.Handle> ESTIMATOR =
            AtomicReferenceFieldUpdater.newUpdater(
                    DefaultChannelPipeline.class, MessageSizeEstimator.Handle.class, "estimatorHandle");
    // ChannelHandlerContext的头和尾，组成链表，ChannelHandler先封装成ChannelHandlerContext再插入链表
    final AbstractChannelHandlerContext head;
    final AbstractChannelHandlerContext tail;
    // 绑定的channel
    private final Channel channel;
    // 成功的future
    private final ChannelFuture succeededFuture;
    private final VoidChannelPromise voidPromise;
    // 内存泄漏检测是否开启
    private final boolean touch = ResourceLeakDetector.isEnabled();
    //
    private Map<EventExecutorGroup, EventExecutor> childExecutors;
    private volatile MessageSizeEstimator.Handle estimatorHandle;
    // 第一次注册
    private boolean firstRegistration = true;
    // 等待任务列表
    private PendingHandlerCallback pendingHandlerCallbackHead;
    // channel是否注册到eventloop中，在调用pipeline的invokeHandlerAddedIfNeeded()时间会将其设置为true
    private boolean registered;
}

构造器

构造器中传入channel与之绑定。

1
2
3
4
5
6
7
8
9
10
11
protected DefaultChannelPipeline(Channel channel) {
    this.channel = ObjectUtil.checkNotNull(channel, "channel");
    succeededFuture = new SucceededChannelFuture(channel, null);
    voidPromise =  new VoidChannelPromise(channel, true);

    tail = new TailContext(this);
    head = new HeadContext(this);

    head.next = tail;
    tail.prev = head;
}

addFirst

  1. 检测是否是共享的handler，如果不是共享的handler已经加载了则抛异常；
  2. 不传name则为simple class name#0；
  3. newCtx = new DefaultChannelHandlerContext，pipeline中不直接持有handler，而是封装成ChannelHandlerContext；
  4. 将ChannelHandlerContext加到链表的头中；
  5. 如果channel还没注册，则ctx状态cas改为添加等待(ADD_PENDING)，添加PendingHandlerAddedTask任务到pendingHandlerCallbackHead任务链表中；
  6. 当前是否在事件循环中：
    1. 如果不在：则newCtx.setAddPending();然后在executor中执行任务callHandlerAdded0()
    2. 如果在：则执行callHandlerAdded0()

在callHandlerAdded0()中会执行handler的handlerAdded()事件，表示添加完成

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
@Override
public final ChannelPipeline addFirst(String name, ChannelHandler handler) {
    return addFirst(null, name, handler);
}

@Override
public final ChannelPipeline addFirst(EventExecutorGroup group, String name, ChannelHandler handler) {
    final AbstractChannelHandlerContext newCtx;
    synchronized (this) {
        // 检测是否是共享的handler，如果不是共享的handler已经加载了则抛异常
        checkMultiplicity(handler);
        // 不传name则为simple class name#0
        name = filterName(name, handler);
        // new DefaultChannelHandlerContext
        newCtx = newContext(group, name, handler);
        // 将ChannelHandlerContext加到链表的头中
        addFirst0(newCtx);

        // If the registered is false it means that the channel was not registered on an eventLoop yet.
        // In this case we add the context to the pipeline and add a task that will call
        // ChannelHandler.handlerAdded(...) once the channel is registered.
        // 还没注册
        if (!registered) {
            // ctx状态cas改为添加等待(ADD_PENDING)
            newCtx.setAddPending();
            // 添加PendingHandlerAddedTask任务到pendingHandlerCallbackHead任务链表中
            callHandlerCallbackLater(newCtx, true);
            return this;
        }

        EventExecutor executor = newCtx.executor();
        if (!executor.inEventLoop()) {
            // newCtx.setAddPending();然后在executor中执行任务callHandlerAdded0
            callHandlerAddedInEventLoop(newCtx, executor);
            return this;
        }
    }
    // 执行ctx的callHandlerAdded方法
    callHandlerAdded0(newCtx);
    return this;
}
// head与head.next之间插入newCtx
private void addFirst0(AbstractChannelHandlerContext newCtx) {
    AbstractChannelHandlerContext nextCtx = head.next;
    newCtx.prev = head;
    newCtx.next = nextCtx;
    head.next = newCtx;
    nextCtx.prev = newCtx;
}

添加或者移除回调callHandlerCallbackLater

PendingHandlerAddedTask任务中执行callHandlerAdded0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private void callHandlerCallbackLater(AbstractChannelHandlerContext ctx, boolean added) {
    assert !registered;

    PendingHandlerCallback task = added ? new PendingHandlerAddedTask(ctx) : new PendingHandlerRemovedTask(ctx);
    PendingHandlerCallback pending = pendingHandlerCallbackHead;
    if (pending == null) {
        pendingHandlerCallbackHead = task;
    } else {
        // 将任务加入任务队列尾部
        // Find the tail of the linked-list.
        while (pending.next != null) {
            pending = pending.next;
        }
        pending.next = task;
    }
}

handlerAdded事件触发callHandlerAdded0

ctx的callHandlerAdded会调用ChannelHandler的handlerAdded(ChannelHandlerContext ctx)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private void callHandlerAdded0(final AbstractChannelHandlerContext ctx) {
    try {
        // ctx的callHandlerAdded会调用ChannelHandler的handlerAdded(ChannelHandlerContext ctx)
        ctx.callHandlerAdded();
    } catch (Throwable t) {
        boolean removed = false;
        try {
            // 移除
            atomicRemoveFromHandlerList(ctx);
            ctx.callHandlerRemoved();
            removed = true;
        } catch (Throwable t2) {
            if (logger.isWarnEnabled()) {
                logger.warn("Failed to remove a handler: " + ctx.name(), t2);
            }
        }

        if (removed) {
            fireExceptionCaught(new ChannelPipelineException(
                    ctx.handler().getClass().getName() +
                    ".handlerAdded() has thrown an exception; removed.", t));
        } else {
            fireExceptionCaught(new ChannelPipelineException(
                    ctx.handler().getClass().getName() +
                    ".handlerAdded() has thrown an exception; also failed to remove.", t));
        }
    }
}

addLast

addLast与addFast逻辑基本一致，只有在加入链表的时候不一样，一个是插入尾部，一个是插入头部

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
@Override
public final ChannelPipeline addLast(String name, ChannelHandler handler) {
    return addLast(null, name, handler);
}

@Override
public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
    final AbstractChannelHandlerContext newCtx;
    synchronized (this) {
        checkMultiplicity(handler);

        newCtx = newContext(group, filterName(name, handler), handler);
        // 插入尾部
        addLast0(newCtx);

        // If the registered is false it means that the channel was not registered on an eventLoop yet.
        // In this case we add the context to the pipeline and add a task that will call
        // ChannelHandler.handlerAdded(...) once the channel is registered.
        if (!registered) {
            newCtx.setAddPending();
            callHandlerCallbackLater(newCtx, true);
            return this;
        }

        EventExecutor executor = newCtx.executor();
        if (!executor.inEventLoop()) {
            callHandlerAddedInEventLoop(newCtx, executor);
            return this;
        }
    }
    callHandlerAdded0(newCtx);
    return this;
}
// 插入到tail.prev和tail之间
private void addLast0(AbstractChannelHandlerContext newCtx) {
    AbstractChannelHandlerContext prev = tail.prev;
    newCtx.prev = prev;
    newCtx.next = tail;
    prev.next = newCtx;
    tail.prev = newCtx;
}

addBefore

addBefore相较与addLast或者addFast就是多了一个查询某个ctx然后在其头部插入。

1
2
ctx = getContextOrDie(baseName);
newCtx = newContext(group, name, handler);

1
2
3
4
5
6
private static void addBefore0(AbstractChannelHandlerContext ctx, AbstractChannelHandlerContext newCtx) {
    newCtx.prev = ctx.prev;
    newCtx.next = ctx;
    ctx.prev.next = newCtx;
    ctx.prev = newCtx;
}

remove

  • remove中使用synchronized加锁处理；
  • 在所有的remove方法移除ctx后都会执行该对象的handler方法。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
@Override
public final ChannelPipeline remove(ChannelHandler handler) {
    remove(getContextOrDie(handler));
    return this;
}
private AbstractChannelHandlerContext remove(final AbstractChannelHandlerContext ctx) {
    assert ctx != head && ctx != tail;

    synchronized (this) {
        atomicRemoveFromHandlerList(ctx);

        // If the registered is false it means that the channel was not registered on an eventloop yet.
        // In this case we remove the context from the pipeline and add a task that will call
        // ChannelHandler.handlerRemoved(...) once the channel is registered.
        if (!registered) {
            callHandlerCallbackLater(ctx, false);
            return ctx;
        }

        EventExecutor executor = ctx.executor();
        if (!executor.inEventLoop()) {
            executor.execute(new Runnable() {
                @Override
                public void run() {
                    callHandlerRemoved0(ctx);
                }
            });
            return ctx;
        }
    }
    callHandlerRemoved0(ctx);
    return ctx;
}
private synchronized void atomicRemoveFromHandlerList(AbstractChannelHandlerContext ctx) {
    AbstractChannelHandlerContext prev = ctx.prev;
    AbstractChannelHandlerContext next = ctx.next;
    prev.next = next;
    next.prev = prev;
}

getContextOrDie

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
private AbstractChannelHandlerContext getContextOrDie(String name) {
    AbstractChannelHandlerContext ctx = (AbstractChannelHandlerContext) context(name);
    if (ctx == null) {
        throw new NoSuchElementException(name);
    } else {
        return ctx;
    }
}

private AbstractChannelHandlerContext getContextOrDie(ChannelHandler handler) {
    AbstractChannelHandlerContext ctx = (AbstractChannelHandlerContext) context(handler);
    if (ctx == null) {
        throw new NoSuchElementException(handler.getClass().getName());
    } else {
        return ctx;
    }
}
private AbstractChannelHandlerContext getContextOrDie(Class<? extends ChannelHandler> handlerType) {
    AbstractChannelHandlerContext ctx = (AbstractChannelHandlerContext) context(handlerType);
    if (ctx == null) {
        throw new NoSuchElementException(handlerType.getName());
    } else {
        return ctx;
    }
}

context()
遍历链表匹配

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Override
public final ChannelHandlerContext context(String name) {
    if (name == null) {
        throw new NullPointerException("name");
    }

    return context0(name);
}
private AbstractChannelHandlerContext context0(String name) {
    AbstractChannelHandlerContext context = head.next;
    while (context != tail) {
        if (context.name().equals(name)) {
            return context;
        }
        context = context.next;
    }
    return null;
}

bind

1
2
3
4
@Override
public final ChannelFuture bind(SocketAddress localAddress) {
    return tail.bind(localAddress);
}

AbstractChannelHandlerContext

ChannelHandlerContext的bind会查作下一个ctx，从尾部向前传递。

AbstractChannelHandlerContext中查找InboundHandler或者OutboundHandler类型的对象时是通过ctx.executionMask & mask判断的，InboundHandler或者OutboundHandler都有其对应的掩码，具体的代码可见io.netty.channel.ChannelHandlerMask#mask0。

findContextOutbound(int mask)方法从后向前查找OutboundHandler类型的handler。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
@Override
public ChannelFuture bind(SocketAddress localAddress) {
    return bind(localAddress, newPromise());
}
@Override
public ChannelFuture bind(final SocketAddress localAddress, final ChannelPromise promise) {
    if (localAddress == null) {
        throw new NullPointerException("localAddress");
    }
    if (isNotValidPromise(promise, false)) {
        // cancelled
        return promise;
    }

    final AbstractChannelHandlerContext next = findContextOutbound(MASK_BIND);
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
        next.invokeBind(localAddress, promise);
    } else {
        safeExecute(executor, new Runnable() {
            @Override
            public void run() {
                next.invokeBind(localAddress, promise);
            }
        }, promise, null);
    }
    return promise;
}
// 向前传递
private AbstractChannelHandlerContext findContextOutbound(int mask) {
        AbstractChannelHandlerContext ctx = this;
        do {
            ctx = ctx.prev;
        } while ((ctx.executionMask & mask) == 0);
        return ctx;
    }

connect/disconnect/close/deregister/flush/bind 逻辑基本一致，通过findContextOutbound向前传递。

read

1
2
3
4
5
@Override
public final ChannelPipeline read() {
    tail.read();
    return this;
}

AbstractChannelHandlerContext.read()

直接查找下一个ChannelOutboundHandler然后执行invokeRead方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
@Override
public ChannelHandlerContext read() {
    // 找下一个
    final AbstractChannelHandlerContext next = findContextOutbound(MASK_READ);
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
        next.invokeRead();
    } else { // 不在事件循环则加入任务中执行
        Tasks tasks = next.invokeTasks;
        if (tasks == null) {
            next.invokeTasks = tasks = new Tasks(next);
        }
        executor.execute(tasks.invokeReadTask);
    }

    return this;
}

private void invokeRead() {
    if (invokeHandler()) {
        try {
            ((ChannelOutboundHandler) handler()).read(this);
        } catch (Throwable t) {
            notifyHandlerException(t);
        }
    } else { // 实例化失败就找下一个处理器
        read();
    }
}

write

1
2
3
4
5
6
7
8
9
@Override
public final ChannelFuture write(Object msg) {
    return tail.write(msg);
}

@Override
public final ChannelFuture write(Object msg, ChannelPromise promise) {
    return tail.write(msg, promise);
}

AbstractChannelHandlerContext.write()

直接查询下一个ctx，如果实例化失败则直接再次执行write()查找下一个，逻辑与read基本一致。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
@Override
public ChannelFuture write(final Object msg, final ChannelPromise promise) {
    write(msg, false, promise);

    return promise;
}
private void write(Object msg, boolean flush, ChannelPromise promise) {
    ObjectUtil.checkNotNull(msg, "msg");
    try {
        if (isNotValidPromise(promise, true)) {
            ReferenceCountUtil.release(msg);
            // cancelled
            return;
        }
    } catch (RuntimeException e) {
        ReferenceCountUtil.release(msg);
        throw e;
    }
    // 查找下一个
    final AbstractChannelHandlerContext next = findContextOutbound(flush ?
            (MASK_WRITE | MASK_FLUSH) : MASK_WRITE);
    // 内存泄漏跟踪
    final Object m = pipeline.touch(msg, next);
    // 在事件循环中执行
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
        if (flush) {
            next.invokeWriteAndFlush(m, promise);
        } else {
            next.invokeWrite(m, promise);
        }
    } else {
        final AbstractWriteTask task;
        if (flush) {
            task = WriteAndFlushTask.newInstance(next, m, promise);
        }  else {
            task = WriteTask.newInstance(next, m, promise);
        }
        if (!safeExecute(executor, task, promise, m)) {
            // We failed to submit the AbstractWriteTask. We need to cancel it so we decrement the pending bytes
            // and put it back in the Recycler for re-use later.
            //
            // See https://github.com/netty/netty/issues/8343.
            task.cancel();
        }
    }
}
private void invokeWrite(Object msg, ChannelPromise promise) {
    if (invokeHandler()) {
        invokeWrite0(msg, promise);
    } else { // 实例化失败则调用下一个
        write(msg, promise);
    }
}

private void invokeWrite0(Object msg, ChannelPromise promise) {
    try {
        ((ChannelOutboundHandler) handler()).write(this, msg, promise);
    } catch (Throwable t) {
        notifyOutboundHandlerException(t, promise);
    }
}

writeAndFlush与write一致，只是封装了一下入口。

Inbound事件

Inbound事件全部由AbstractChannelHandlerContext的静态方法处理，同时入参为handler链的头结点。关于Inbound事件的这些静态方法的解析统一放到AbstractChannelHandlerContext的解析中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
@Override
public final ChannelPipeline fireChannelRegistered() {
    AbstractChannelHandlerContext.invokeChannelRegistered(head);
    return this;
}

@Override
public final ChannelPipeline fireChannelUnregistered() {
    AbstractChannelHandlerContext.invokeChannelUnregistered(head);
    return this;
}
@Override
public final ChannelPipeline fireChannelActive() {
    AbstractChannelHandlerContext.invokeChannelActive(head);
    return this;
}

@Override
public final ChannelPipeline fireChannelInactive() {
    AbstractChannelHandlerContext.invokeChannelInactive(head);
    return this;
}

@Override
public final ChannelPipeline fireExceptionCaught(Throwable cause) {
    AbstractChannelHandlerContext.invokeExceptionCaught(head, cause);
    return this;
}

@Override
public final ChannelPipeline fireUserEventTriggered(Object event) {
    AbstractChannelHandlerContext.invokeUserEventTriggered(head, event);
    return this;
}

@Override
public final ChannelPipeline fireChannelRead(Object msg) {
    AbstractChannelHandlerContext.invokeChannelRead(head, msg);
    return this;
}

@Override
public final ChannelPipeline fireChannelReadComplete() {
    AbstractChannelHandlerContext.invokeChannelReadComplete(head);
    return this;
}

@Override
public final ChannelPipeline fireChannelWritabilityChanged() {
    AbstractChannelHandlerContext.invokeChannelWritabilityChanged(head);
    return this;
}

参考

Netty源码解读（三）Channel与Pipeline
